4GP-1200EP EFGL 鋰電高配高功率出口版作業平臺+太陽能輔助發電

聯系中頤

產品屬性

所屬類別：自走式果園作業平臺
商品來源：中頤農裝
瀏覽次數：3685
發布日期：2021-10-07 10:37:24

產品概述

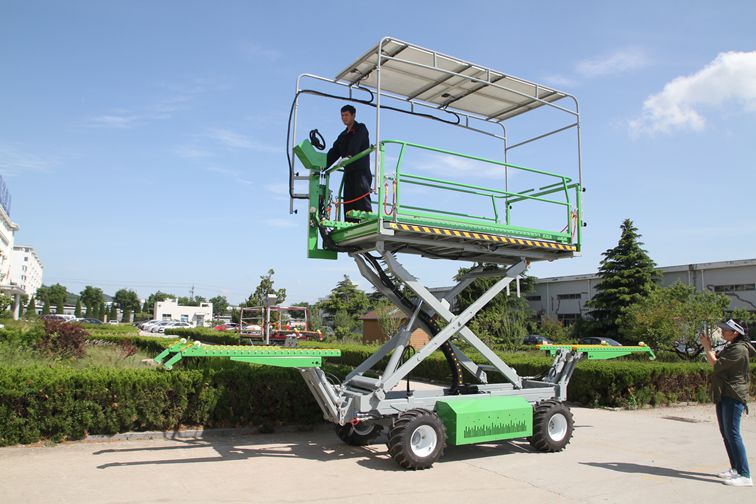

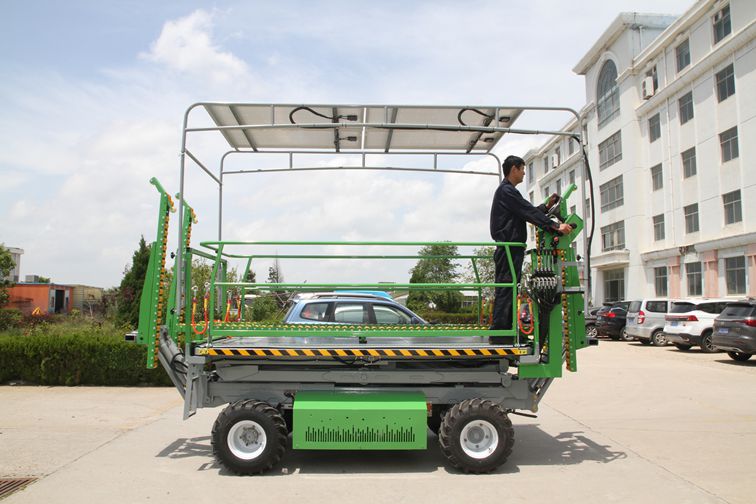

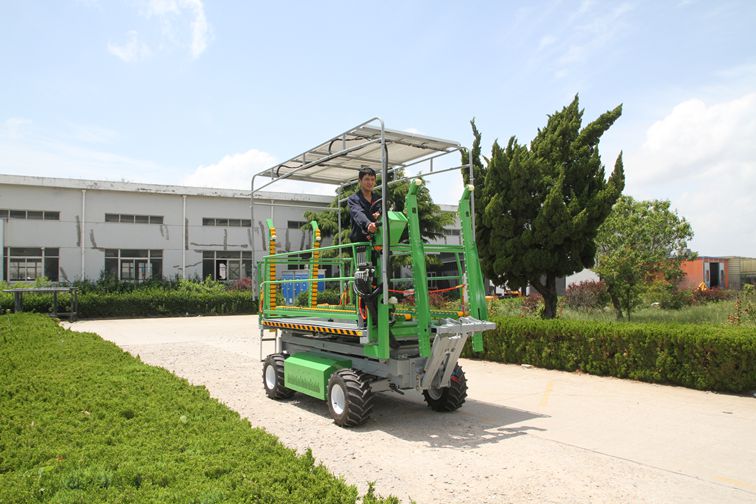

4GP-1200EP 電驅動采摘作業平臺

4GP-1200EP electric drive picking platform

描述Description：

4GP-1200EP 電驅動采摘作業平臺是中頤公司為中大規模園區用戶開發的一款全尺寸采摘作業平臺，展開作業面3m x 3m，能同時容納作業人員6-8人+2個500公斤標準大果筐，該平臺是中頤1200系列平臺的高配高功率版，除了具有1200型的高性價比、高結構強度、高可靠性、高耐用性、高載荷、高效率、高兼容性、易維護等特點外，中頤公司為其配備了帶有BMS管理系統的大容量鋰電池組（電池容量200Ah），為其裝備了采用CAN總線通信控制的交流電機和交流控制系統，使得電機及電池性組的性能都得到了極好的調教，并且為了改善坡道行駛性能，還為該機型增加了陡坡緩降功能，使其在20%的坡道上滿載工作仍具有卓越的操控性，操作者可從容不迫！

4GP-1200EP electric drive picking operation platform is a full-size picking operation platform developed by Zoomye Company for medium and large-scale park users. The operating surface is 3m x 3m, which can accommodate 6-8 operators+2 500 kg standard fruit baskets at the same time. This platform is the high configuration and high power version of Zoomye 1200 series platform. In addition to the high cost performance, high structural strength, high reliability, high durability, high load, high efficiency, high compatibility In addition to the features of easy maintenance, Zoomye Company has equipped it with a large capacity lithium battery pack with BMS management system (battery capacity 200Ah), and equipped it with an AC motor and AC control system using CAN bus communication control, so that the performance of the motor and battery pack has been very well adjusted. In order to improve the driving performance on the ramp, it has also added a steep descent function for the model, It still has excellent controllability when working with full load on 20% ramp, so the operator can take it easy!

適合作物：蘋果、梨、櫻桃、桃子、柑橘、煙草、立體種植的蔬菜等

Suitable crops: apples, pears, cherries, peaches, oranges, tobacco, stereoscopic vegetables, etc

適合用戶群： 中大規模園區

Suitable for user groups: medium and large-scale parks

●綠色新能源 “零”噪聲污染

●Green new energy, “zero” noise pollution

●運行費用低每天幾元電費經濟性強

●Cheap and effective, it costs as low as a few money daily

●操控簡單易學行走無級調速

●Easy to operate and learn Stepless speed regulation for walking

●采用高強度車身結構

● High strength body structure

●采用“零”落差工作臺面設計

● "Zero" drop worktable design

●采用傾角可調護欄結構

● Adopt adjustable angle guardrail structure

●采用名牌電器件電控系統可靠耐用

●Brand electrical components are used, ensures reliable and durable electrical control system

●采用商用車輛高標準線束

● High standard harness of commercial vehicles

●采用大容量名牌鋰離子動力蓄電池使用壽命長

● Lithium ion power battery with large capacity and famous brand has a long service life

●采用高標準車載充電裝置

● High standard on-board charging device

●采用名牌液壓部件保證液壓系統的穩定性可靠性

●Brand hydraulic components are used, ensure the stability and reliability of hydraulic system

●采用名牌液壓管路管件

● Hydraulic pipe fittings with famous brands

●整機結構件激光切割成型精度極高

●Complete machine structure is formed by laser cutting with high precision

●全系標配加寬越野輪胎

●Standard widened off-road tire are equipped as a standard for the whole series

●采用抗紫外線耐候油漆涂層

●UV resistant and weather resistant paint coating

●行走系統帶有動能回收功能

● The traveling system has the function of kinetic energy recovery

●一次充電可持續工作8-32小時

●8 to 32 hours of continuous operation on a single charge

●全系標配加寬越野輪胎

4GP-1200EP型果園采摘作業平臺產品規格表

Product Specification Table of 4GP-1200EP Orchard Picking Platform

序號 Serial No	項目 Item	單位 Unit	主要參數 Main Parameter
1	型號名稱Model Name	/	4GP-1200EP型果園采摘作業平臺 4GP-1200EP Orchard Picking Platform
2	結構型式Structural Style	/	自走式 Self-propelled type
3	驅動型式Driving Type	/	2輪驅動 2WD
4	升降機構類型Type of lifting mechanism	/	剪叉式 Scissor fork type
5	轉向型式Steering type	/	液壓動力轉向（方向盤） Hydraulic power steering (steering wheel)
6	配套動力型式Type of support power	/	電動機 Electric motor
7	配套動力Supporting power	kW	10
8	整機外形尺寸（長×寬×高） Maximum Overall dimension(LWH)	mm	3725×1725×2500
9	工作臺最大尺寸（長×寬） Maximum dimension ofwork platform(L*W)	mm	3000×3000
10	額定載荷Rated load	kg	1200
11	舉升負載量Lifting Load	kg	1000
12	升降高度范圍Lifting height range	mm	1130～2660
13	最小離地間隙Minimum ground clearance	mm	175
14	輪胎型號（前輪/后輪）Tire type(Front/Rear)	/	26×12.00-12/26×12.00-12
15	爬坡能力Climbing ability	%	20
16	輪距Wheel tread	mm	1370
17	工作臺橫向最大調平角度 Maximum Horizontal leveling angle of work platform	°	/
18	工作臺縱向最大調平角度 Maximum Longitudinal leveling angle of work platform	°	/
19	平臺升降速度 Platform rising & falling speed	mm/s	額定負載升速：50；空載升速：60 額定負載降速：95；空載降速：90 Rated load speed rise: 50; No load speed rise: 60 Rated load deceleration: 95; No load deceleration: 90
20	最大沉降量Maximum subsidence	mm	8
21	行走速度范圍 Travel speed range	m/s	0～1.94
22	轉彎半徑Turning radius	m	6

1200EP高配高功率型三電配置： 鋰電動力蓄電池組+交流無刷電機+交流電控（CAN總線通信控制）。

High configuration high power type three electricity configuration: lithium battery pack + AC brushless motor + AC electric control (CAN bus communication control).

※選裝配置Optional：

A 增程發電機 A Extended range generator

C MP3 播放器 C MP3 player

D 夜間工作燈 D Night work light

E 遮陽蓬 E Sunshade

F 太陽能輔助發電系統F Solar auxiliary power generation system

G后舉升叉系統G Rear lifting fork system

I 護欄置物袋 I Guardrail storage bag

J 折疊座椅 J Folding seats

K 220V AC 交流輸出 K 220V AC output

L 前舉升叉系統 L Front lifting fork system

*參數表僅描述了基本型參數，選裝配置參數請咨詢中頤公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

*規格參數及外觀，隨產品開發不斷更新，具體參數請咨詢中頤公司，以中頤公司最新參數為準，以上參數不作為整機驗收依據。咨詢電話 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
