4GP-400 系列迷你電驅動果園作業平臺

聯系中頤

產品屬性

所屬類別：自走式果園作業平臺
商品來源：中頤農裝
瀏覽次數：3355
發布日期：2022-07-20 16:23:04

產品概述

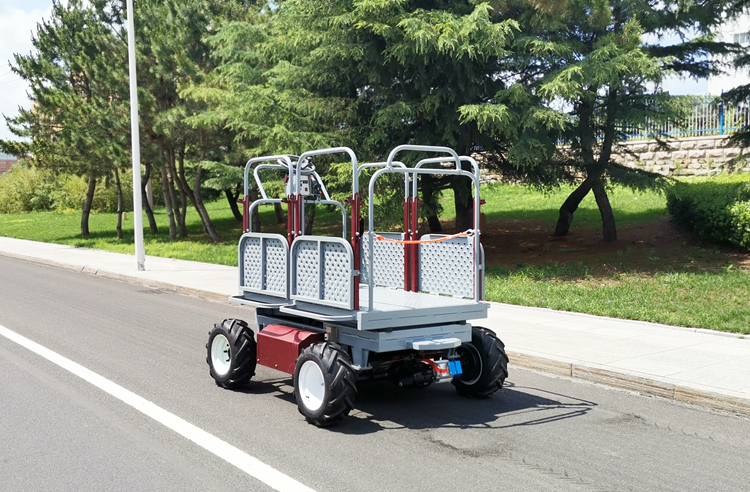

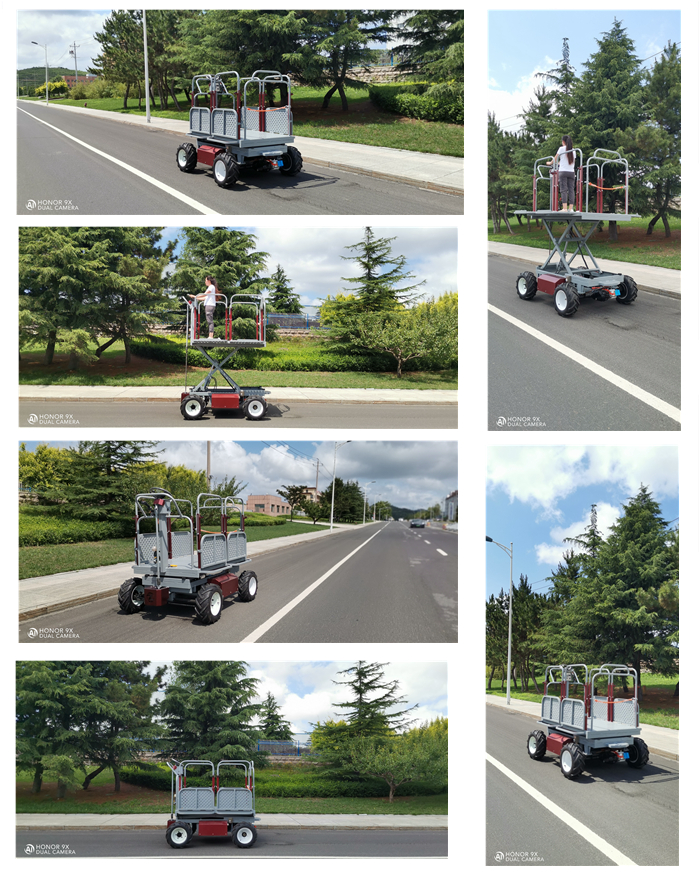

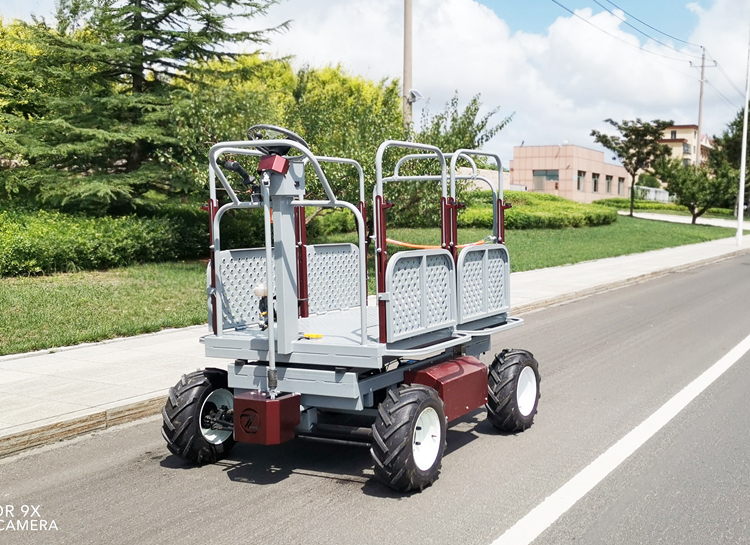

400 迷你型電驅動采摘作業平臺

400 Mini Electric Drive Picking Platform

描述Description:

400 迷你型電驅動采摘作業平臺系列是中頤公司為地塊較小、地頭較短園區的用戶專門開發的一款迷你型采摘作業平臺，具有采購成本低、結構輕便可靠、轉彎半徑小、能耗小、易維護等特點。

400 Mini Electric Driving Picking Platform Series is a mini-type picking platform specially developed by Zoomye Company for users in parks with small plots and short fields. It has the characteristics of low purchasing cost, light and reliable structure, small turning radius, low energy consumption and easy maintenance.

適合作物：蘋果、梨、櫻桃、桃子、柑橘、煙草、立體種植的蔬菜等

Suitable for crops: apples, pears, cherries, peaches, citrus, tobacco, three-dimensional vegetables, etc.

適合用戶群： 地塊較小、地頭較短的園區

Suitable for users: parks with small plots and short fields.

●綠色新能源 “零”噪聲污染

●Green new energy, “zero” noise pollution

●運行費用低每天幾元電費經濟性強

●Cheap and effective, it costs as low as a few money daily

●操控簡單易學行走無級調速

●Easy to operate and learn Stepless speed regulation for walking

●采用名牌電器件電控系統可靠耐用

●Brand electrical components are used, ensures reliable and durable electrical control system

●采用大容量名牌蓄電池使用壽命長

●High capacity brand battery is used, ensures a long service life

●采用名牌液壓管路

●Brand hydraulic hoses are used

●整機結構件激光切割成型精度極高

●Complete machine structure is formed by laser cutting with high precision

●全系標配加寬輪胎

●Standard widened off-road tire are equipped as a standard for the whole series

●采用抗紫外線耐候油漆涂層

●UV resistant and weather resistant paint coating

●一次充電可持續工作8-32小時

●8 to 32 hours of continuous operation on a single charge

4GP-400 果園采摘作業平臺產品規格表

Product Specification Table of 4GP-400 Orchard Picking Platform

序號 Serial No.	項目 Item	單位 Unit	主要參數 Main Parameter
1	型號名稱Model Name	/	4GP-400系列果園采摘作業平臺 4GP-400 series orchard picking platform
2	結構型式Structural Style	/	自走式Self-propelled type
3	驅動型式Driving Type	/	2輪；4輪驅動選裝 2WD; 4WD optional

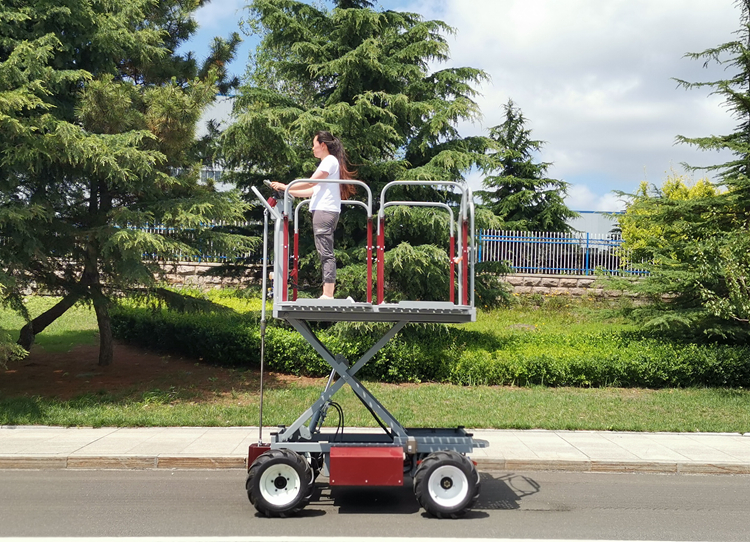

4	升降機構類型Type of lifting mechanism	/	剪叉式 Scissor fork type
5	轉向型式Steering type	/	機械轉向（方向盤） Mechanical steering (steering wheel)
6	配套動力型式Type of support power	/	電動機 Electric motor
7	配套動力Supporting power	kW	2 ； 4 選裝 optional
8	整機外形尺寸（長×寬×高） Maximum Overall dimension(LWH)	mm	2240×1675×1990
9	工作臺最大尺寸（長×寬） Maximum dimension of work platform(L*W)	mm	1780×2200；1780x2500 選裝 optional
10	額定載荷Rated load	kg	400
11	舉升負載量Lifting Load	kg	400
12	升降高度范圍Lifting height range	mm	790～1800
13	最小離地間隙Minimum ground clearance	mm	165
14	輪胎型號（前輪/后輪） Tire type(Front/Rear)	/	23×8.50-12/23×8.50-12
15	爬坡能力Climbing ability	%	15
16	輪距 Wheel tread	mm	1455
17	工作臺橫向最大調平角度 Maximum horizontal leveling angle of work platform	°	/
18	工作臺縱向最大調平角度 Maximum longitudinal leveling angle of work platform	°	/
19	平臺升降速度 Platform rising & falling speed	mm/s	額定負載升速：70；空載升速：85 額定負載降速：210；空載降速：175 Rated load speed rise: 70; No load speed rise: 85 Rated load deceleration: 210; No load deceleration: 175
20	最大沉降量Maximum subsidence	mm	8
21	行走速度范圍 Travel speed range	m/s	0～2.5
22	轉彎半徑 Turning radius	m	4.2

400基本型三電配置： 鉛酸動力蓄電池+直流無刷電機+直流電控

400 basic three electricity configuration: lead-acid power battery +DC brushless motor +DC electric control

※選裝配置Optional:

A 增程發電機 A Extended range generator

B 電子制動 B Electronic brake

C MP3 播放器 C MP3 player

D 夜間工作燈 D Night work light

E 遮陽蓬 E Sunshade

F 太陽能輔助發電系統 F Solar auxiliary power generation system

*參數表僅描述了基本參數，高配高功率及選裝配置參數請咨詢中頤公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

*規格參數及外觀，隨產品開發不斷更新，具體參數請咨詢中頤公司，以中頤公司最新參數為準，以上參數不作為整機驗收依據。咨詢電話 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
